Armoured Infantry Battle and Reconnaissance Vehicle BPzV
Constructed on the carriage of a BVP (also known as BMP), it is designed for conducting detached reconnaissance or combat activities in enemy rear areas.
The major difference to the BVP (BMP) is in its eight-barrel launching device 902S, mounted on the back side of the turret, which enables the throwing of smoke grenades. The compartment for operators is divided into workplaces of radio operator, navigator and reconnaissance operator. In addition to the weapons and protection systems of the basic BVP-1 (BMP-1), the BPzV vehicle is equipped with PSNR-5 radar.
Basic Technical Data
- Combat weight: 13,800 kg
- Crew: 6
- Maximum speed: 65 km per hour
- Operation range: 600 to 700 km
- Maximum height of obstacle: 700 mm
- Maximum width of obstacle: 2,500 mm
- Rate of ammunition supply: 3,500 cartridges for machine gun
- Rate of ammunition supply: 76 cartridges for cannon
- Rate of ammunition supply: 7 anti-tank guided missiles AT-3 Maljutka (SAGGER)
- Additional weapons: 5 pieces of 7,62mm sub-machine gun type 58V, 4 pieces of portable anti-tank RPG-75 grenade launcher, and 12 pieces of hand grenade

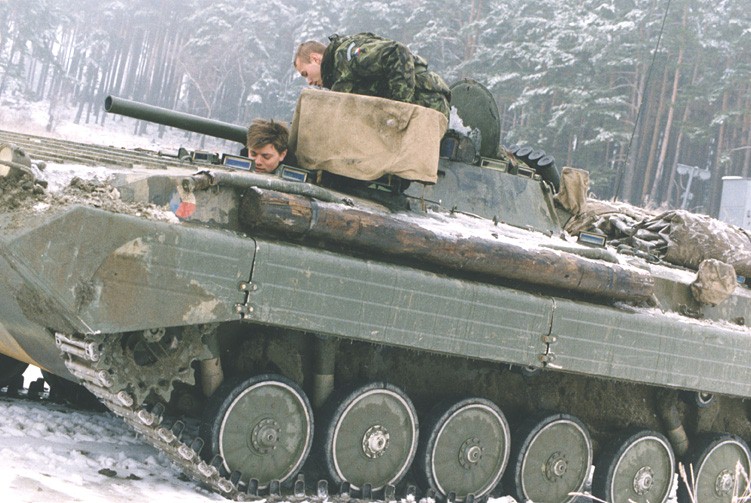

Picture attachment
