Demining System BOZENA 5
The demining system BOZENA 5 is a remote-control machine designed for terrain demining from anti-personnel and anti-tank mines.

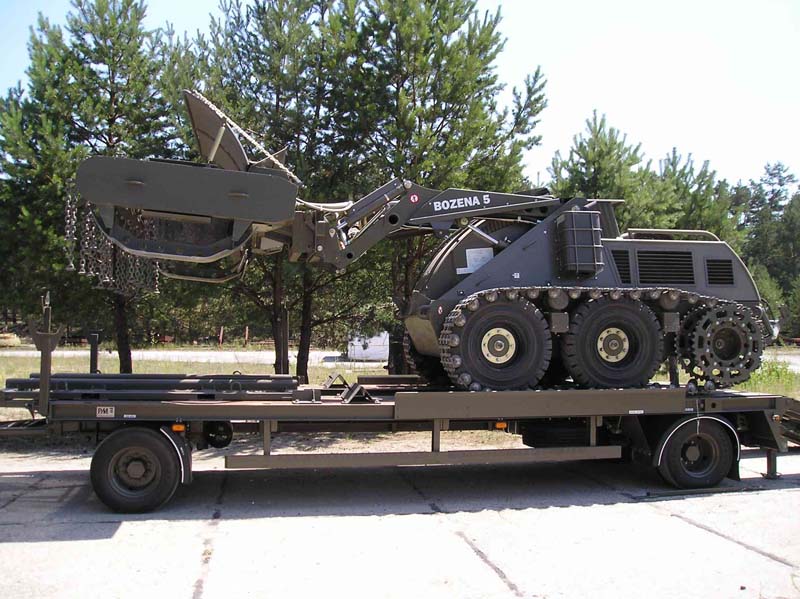

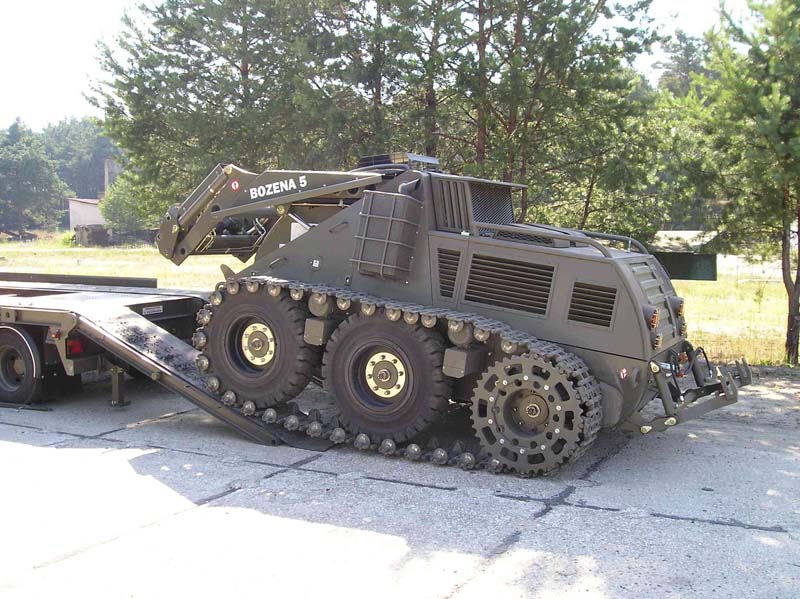

It is equipped with a rotating flail-chain demining device. The system includes the primary machine body, flain device, operator´s cab and transport platform trailer. Beside demining, the machine can be used for clearence from bushes and low vegetation, and after change of working device also for transport and handling of dangerous material, or a remote-control digging/level machine.
Basic tactical-technical data
Total weight: 12,020 kg
Maximum height in working position: 2,225 mm
Maximum width in working position: 3,350 mm
Maximum length in working position: 7,320 mm

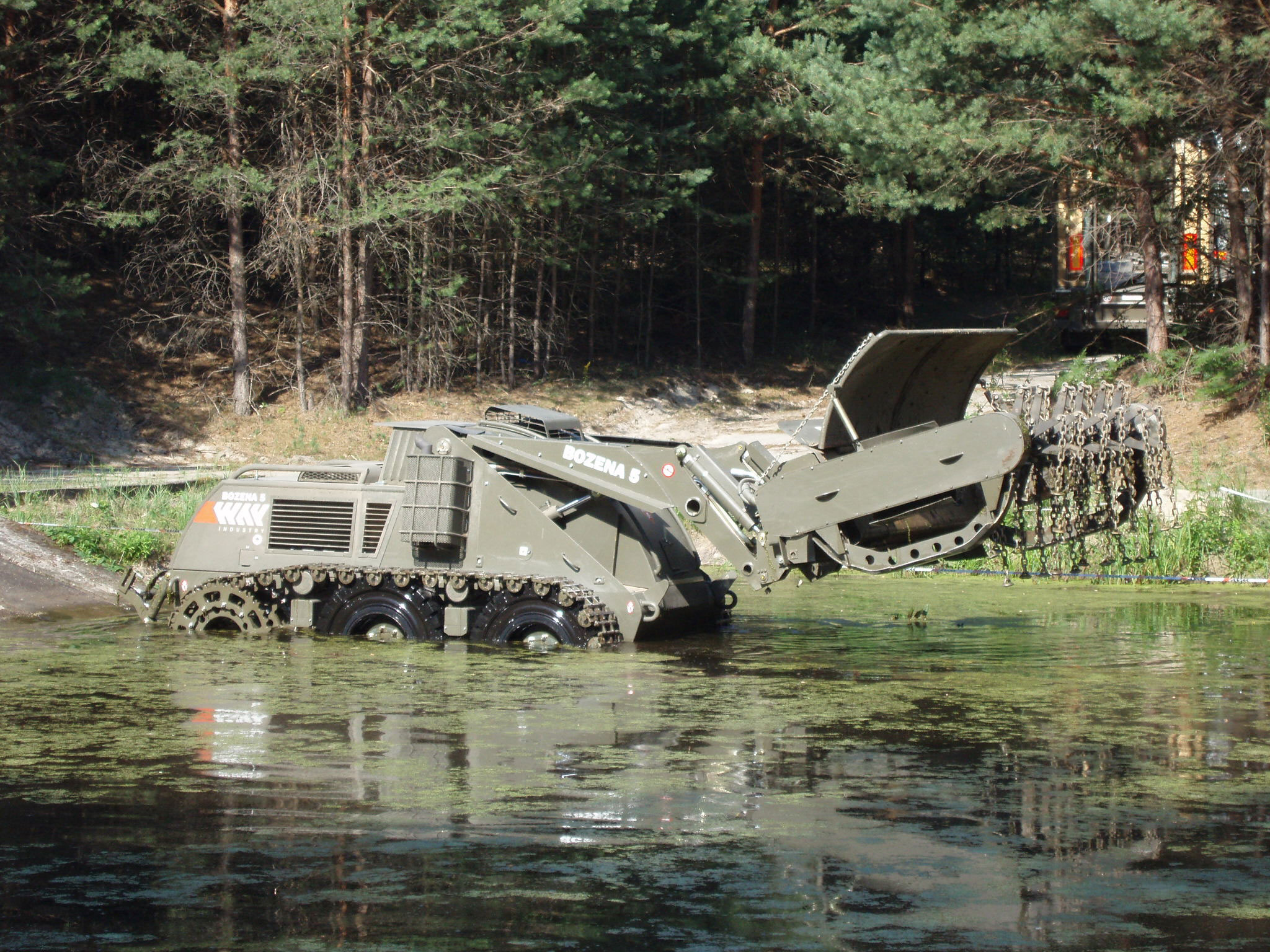

Fording Depth: up to 800 mm
Working speed: 4-9 km/h
Width of demined strip: 2,655 mm
Engine output: 170 kW
VIDEO from military tests of the system:
